Name: High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Aperçu Produits Moteur de balayage de code barres

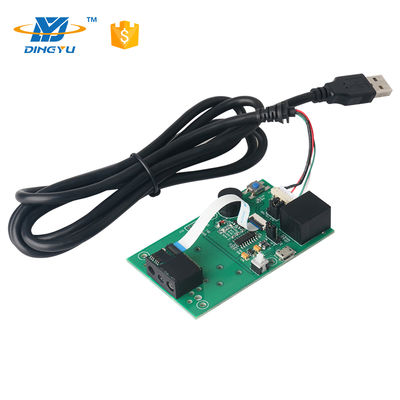

High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU

Détails sur le produit:

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	10

Contact

Description de produit détaillée

Numéro de modèle.:	DE2290	Type d'interface:	USB
Vitesse de balayage:	35cm/s	Élément de balayage:	CMOS
Résolution:	3mil / 0,076 mm	Capteur d'image:	640 * 480
Contraste d'impression:	20%	Alimentation:	C.C 3,3 V, 200 mA
Câble FFC:	5 cm	hauteur de chute:	1,2 m
Poids:	3,5 g	Profondeur de champ:	40-530mm
Dimensions:	21,40 × 15,40 × 10,70 mm	Source de lumière:	LED blanche, LED rouge
Température de fonctionnement:	-20ºC à 55ºC
Mettre en évidence:	1 Mega Pixel Barcode Scanner Module , 640*480 Image Sensor 2D Barcode Scan Engine , 32-bit CPU Embedded Barcode Scanner

High Quality USB Fixed Kiosk 2D Good Payment Barcode Scanner Module

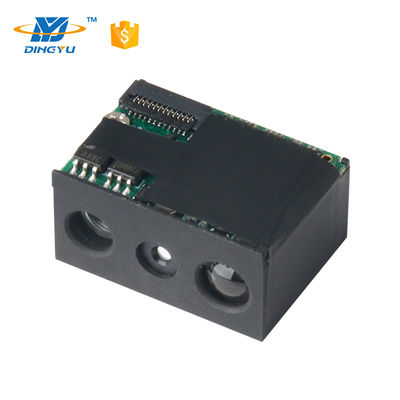

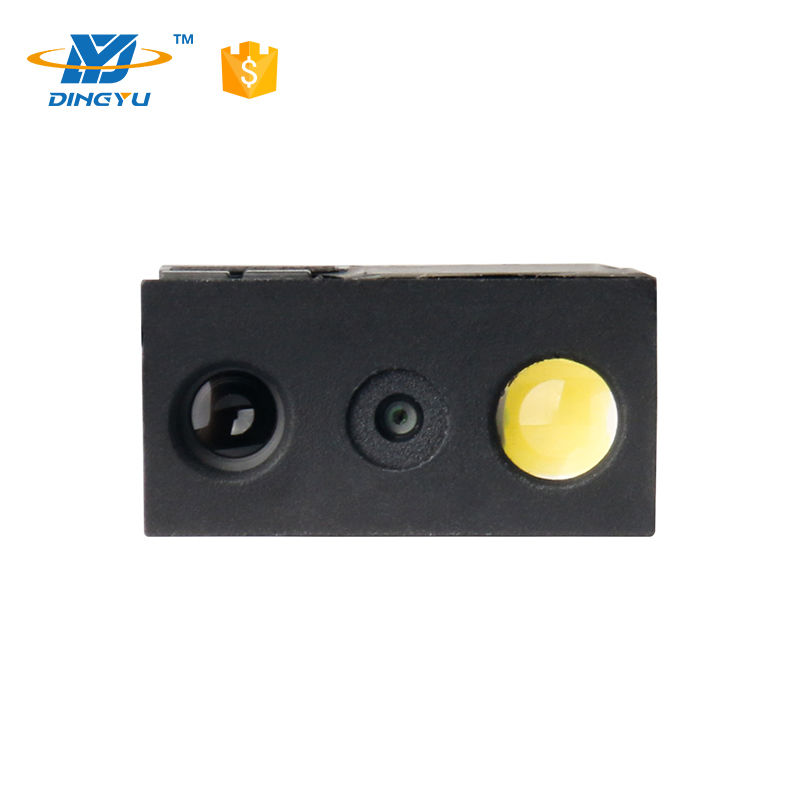

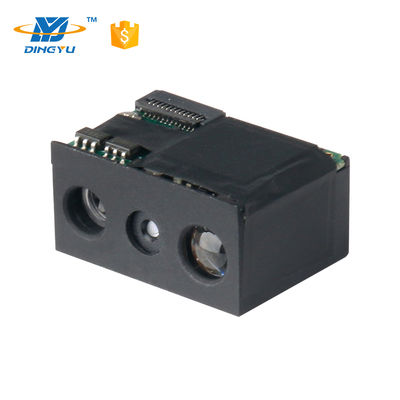

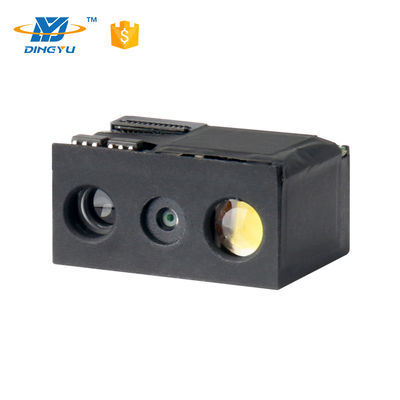

DE2290 is a high-performance 1 megapixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system.

Excellent reading performance for barcodes on paper, merchandise, and digital screens
Compact integrated design for easy installation in various equipment
Ideal for self-service machines, price checking systems, and smart lockers

Product Specifications

Weight: 3.4g (without cable)

Dimensions: 21.40±0.1mm (L) × 15.40mm±0.1mm (W) × 10.70±0.1mm (H)

Interface: USB, USB-com (requires driver), TTL (USB 2.0 Full Speed protocol)

Light Source: White LED (auto-adjusting brightness) with red aiming LED (525nm wavelength)

CMOS: 1280×800 resolution

CPU: ARM 32-bit processor

Performance Parameter	Specification
Startup Time	750ms
Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field	30-500mm
Scan Modes	Trigger mode, Auto sense mode, Command control
Reading Angles	Roll: ±360°, Pitch: ±60°, Yaw: ±70°
Motion Tolerance	65cm/s
Power Input	3.3V~5V (DC5V recommended), Standby: 47mA, Decoding: 180mA average

Supported Symbologies

1D Codes: Codabar, Code39, Code32, ITF25, Industrial 25, Matrix 25, Code93, Code11, Code128, GS1-128, UPC-A/E, EAN/JAN, ISBN, ISSN, GS1 Databar variants, MSI, Febraban

2D Codes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

Environmental Specifications
