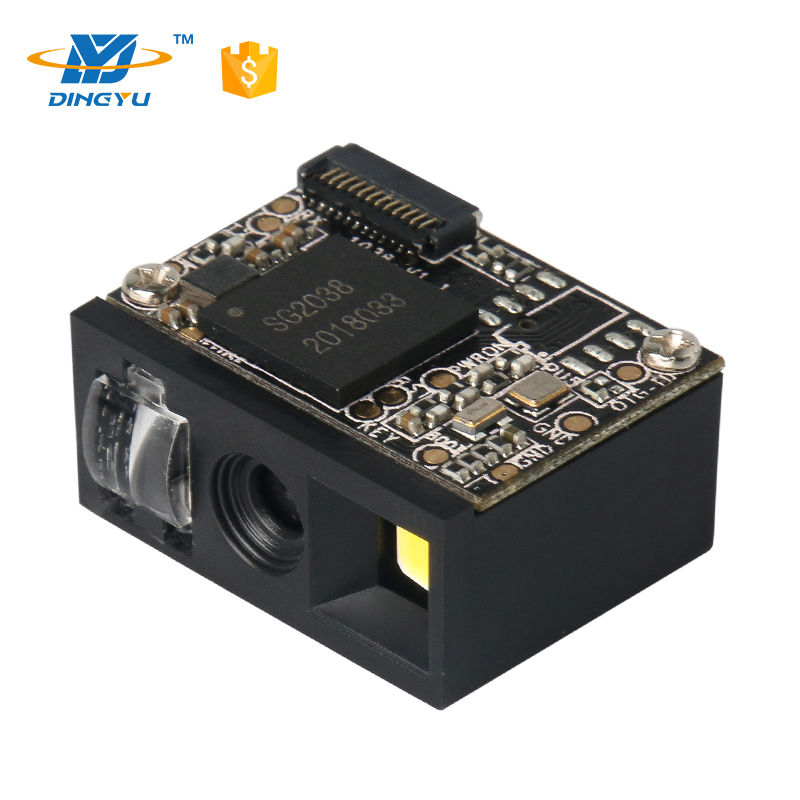

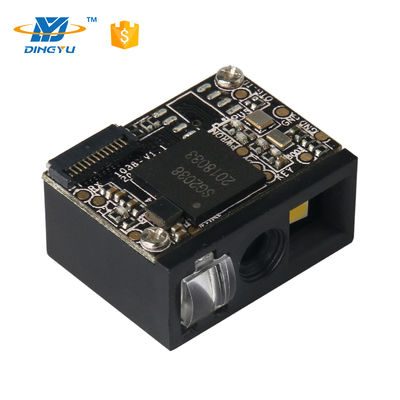

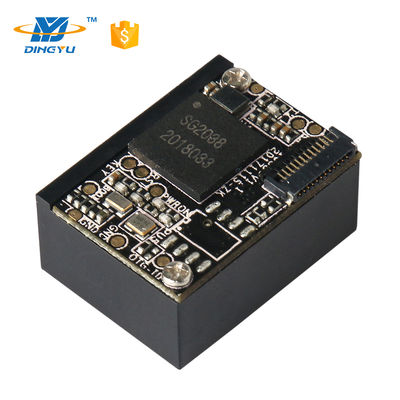

Name: Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Aperçu Produits Moteur de balayage de code barres

Compact 2D Barcode Scan Engine with 640*480 Resolution 25cm/S Scan Speed and 4mil/0.1mm Reading Precision

Détails sur le produit:

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	10

Contact

Description de produit détaillée

Numéro de modèle.:	DE2120	Type d'interface:	USB
Vitesse de balayage:	25cm/s	Élément de balayage:	CMOS
Capteur d'image:	640 * 480	Mode de balayage:	Scanner automatique, en continu
Contraste d'impression:	25%	Poids:	4G
Câble FFC:	5 cm	hauteur de chute:	1,2 m
Profondeur de champ:	25mm-400mm	Précision de lecture:	4 mil/0,1 mm
Dimensions:	21,2 mm16,0 mm12,0 mm	Alimentation:	C.C 3,3 V à 160 mA
Température de fonctionnement:	-20ºC à 50ºC
Mettre en évidence:	640*480 Resolution 2D Barcode Scan Engine , 25cm/S Scan Speed Embedded Barcode Scanner Module , 4mil/0.1mm Reading Precision QR Code Scanner Module

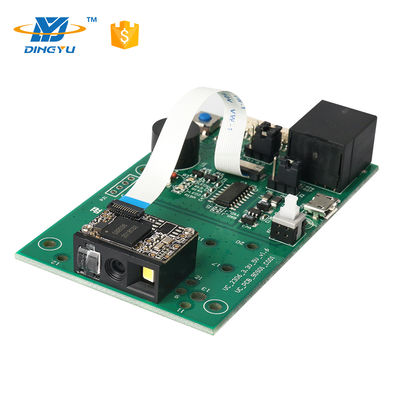

Small Embedded 2D Scanning Engine Supports USB, TTL and Other Interfaces

The DE2120 is a practical embedded barcode scanner module featuring leading CMOS image recognition technology and intelligent image recognition system. This OEM 2D barcode scanner module with USB output can scan universal 1D and 2D codes, supporting multiple interfaces including USB and TTL. It reads barcodes from paper, goods, screens, and other media, and can be easily embedded in various OEM products including handheld devices, portable equipment, fixed installations, and barcode collectors.

Product Parameters

Scan Type	CMOS
Light Source	Red Light LED 625±10nm(aim), 5600K LEDs (Lighting)
CPU	32-bit
Resolution	640*480
Reading precision	≥4mil/0.1mm(PCS90%,Code 39)
Decoding speed	25CM/S
Depth of field	25mm-400mm
Scan Mode	Manual, Continuous, Auto Sense, command control
Scan angle	Test Conditions: CODE39,10mil/0.25mm,PCS90% Pitch: ±45° Roll: ±360° Skew: ±40°
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Strande 2 of 5, Codabar(NW-7), MSI Plessey, GS1 Databar(RSS), China Post, etc. 2D: QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, etc.
Weight	<4g
Dimension	(L)21.2mm * (W)16.0mm * (H)12.0mm
Communication Mode	USB(USB-KBW,USB-COM), TTL
Interface Type	FFC 12PIN Pitch 0.5
Power Supply	DC 3.3V @160mA(Work)
Operating temperature	-20ºC to 50ºC
Storage temperature	-40ºC to 70ºC
Humidity	5% to 95%(non-condensing)
Drop Height	1.2m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp. High Temp.: 60ºC Low Temp.: -20ºC
Transport vibration Test	10H@125RPM

Detailed Photos

Packaging & Shipping

Company Profile

Certifications

Exhibition

Frequently Asked Questions

Q1: How do you make sure the high quality barcode scanner?

DYscan: We are professional manufacturer and developer of barcode scanners with 18 years of field experience. Our professional QC team uses testing machines including engine age test, wire bend machine, switch life test, and shock resistance test. All our barcode scanners pass CE, FCC, ROSH certifications.

Q2: How do you make quality control?

DYscan: We perform wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipping.

Q3: How long is the warranty time of barcode scanner?

DYscan: 12 months

Q4: How to control the performance stable?

DYscan: We use flow line production throughout processing. Every product is tested at least 4 times before delivery.

Q5: Can you provide OEM or ODM service for barcode scanner?

DYscan: We offer OEM services including printing your logo, color box, and user manual. Our technical team supports ODM services.

Q6: What are your strengths?

DYscan: As a professional scanner manufacturer, we have specialized departments with directors overseeing R&D (new product development), production (manufacturing and testing), and marketing/sales (sales team and customer service).

Q7: Do I need to install drivers?

DYscan: No. Our scanners support plug-and-play functionality without requiring driver installation. They are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
