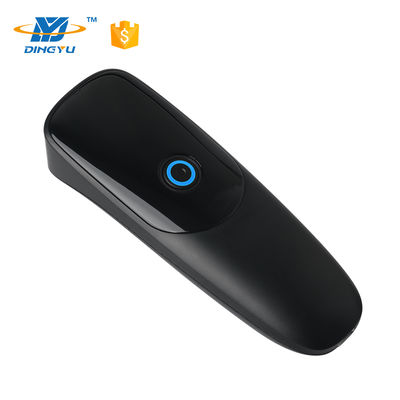

Name: Wireless Bluetooth Barcode Scanner 1D 2D QR CMOS 1280x800
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 15 USD
Availability: InStock

Aperçu Produits lecteur de codes barres sans fil

Wireless Bluetooth Barcode Scanner 1D 2D QR CMOS 1280x800

Détails sur le produit:

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	15

Contact

Description de produit détaillée

Vitesse de balayage:	65cm/s	Élément de balayage:	CMOS
Résolution de la caméra:	1280 * 800	Précision de lecture:	≥ 3 mil/0,076 mm
Profondeur de champ:	30-500MM	Contraste d'impression:	≥20%
Processeur:	32 bits	Capacité de la batterie:	1200mAh
Temps de travail continu:	12h	Temps de charge:	3.5h
Distance sans fil:	Bluetooth 30m, 2,4 g 100m	Capacité de stockage:	350 Ko (20 000 codes à barres)
Poids:	≈70 g	Dimensions:	L130 mm * W46.5 mm * H28.5 mm
Température de fonctionnement:	-20ºC à 55ºC
Mettre en évidence:	Wireless Bluetooth barcode scanner , 1D 2D QR barcode scanner , CMOS wireless barcode scanner

Portable High Performance Wireless Bluetooth Barcode Scanner Mini 1D 2D Barcode Scanner

Product Specifications

Attribute	Value
Model NO.	DI9130-2D
Interface Type	Wireless 2.4G Bluetooth
Scan Speed	65cm/S
Scan Element Type	CMOS
Camera	1280*800
Resolution	3mil Code39
Depth of Field	30-500mm
Scan Mode	Manual, Continuous, Auto Scan, Flashing
Print Contrast Signal	20%
CPU	32 Bit
Battery	1200mAh
Continuous Working Time	12h
Charging Time	3.5h
Storage	350kb (Over 20,000 Barcodes)
Dimensions	L130mm * W46.5mm * H28.5mm
Weight	≈70g (without cable)

Key Features

High-performance 1D/2D barcode scanning with CMOS technology
Dual wireless connectivity: Bluetooth (30m) and 2.4G (100m open distance)
Fast scanning at 65cm/s with 3mil resolution
Wide scanning angle (±360° roll, ±60° pitch, ±70° yaw)
Long battery life: 12 hours continuous operation
Rugged design with 1.5m drop resistance
Supports wide range of barcode symbologies including QR codes, PDF417, Data Matrix
Compact and lightweight (130×46.5×28.5mm, 70g)

Technical Parameters

Light Source: White LED (auto-adjust brightness) + Red LED aiming (525nm)

Operating Temperature: -20ºC to 55ºC

Storage Temperature: -20ºC to 60ºC

Humidity Resistance: 5% to 95% (non-condensing)

Interface: Type C

Power Supply: DC5V (47mA standby, 200mA average)

Supported Barcode Types

1D Codes: Codabar, Code39, Code128, UPC, EAN, GS1 Databar, MSI, and more

2D Codes: PDF417, QR Code, Data Matrix, Aztec, Micro QR

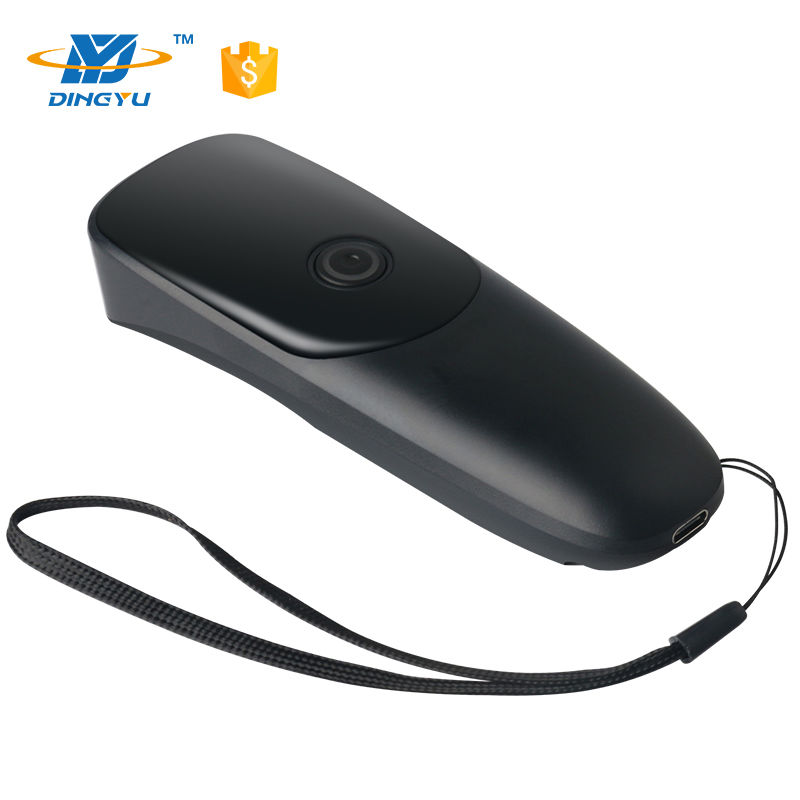

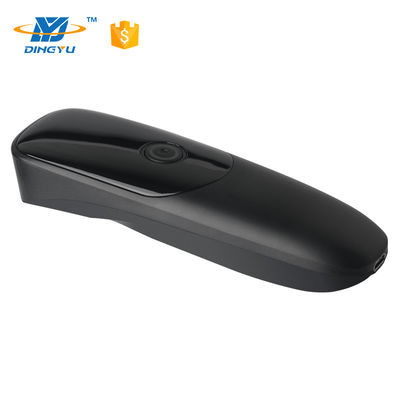

Product Images
