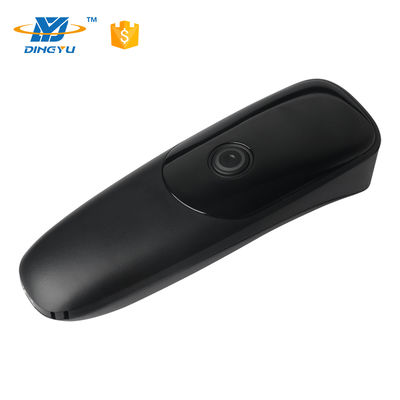

Name: 2D Wireless Bluetooth Barcode Scanner with 300 Scans/Sec Speed
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 28.00 USD
Availability: InStock

Aperçu Produits lecteur de codes barres sans fil

2D Wireless Bluetooth Barcode Scanner with 300 Scans/Sec Speed

Détails sur le produit:

Conditions de paiement et expédition:

Quantité de commande min:	1

Contact

Description de produit détaillée

Modèle n °:	DI9130C-2D	Type d'interface:	USB
Vitesse de balayage:	300 balayages/sec	Élément de balayage:	CMOS
Résolution:	640 * 480	Vitesse de décodage:	35cm/s
Profondeur de champ:	35 mm ~ 300 mm	Distance sans fil:	Bluetooth 30 m, sans fil 2.4g 150m
Capacité de la batterie:	1200mAh	Temps de charge:	2,5 heures (5V @ 1000mA)
Temps de travail:	8h	Poids:	≈70 g (sans câble)
Dimensions:	L128.6 mm * w46.7 mm * h30.3 mm	Température de fonctionnement:	-20ºC à 55ºC
température de stockage:	-20ºC à 60ºC
Mettre en évidence:	wireless Bluetooth barcode scanner , 2D barcode scanner with warranty , high-speed barcode scanner 300 scans/sec

2D Wireless Bluetooth Pocket Coms Mini Barcode Reader

Key Features

High-performance 2D Bluetooth and wireless 2.4G barcode scanner
CMOS image recognition technology for superior scanning
Reads paper, goods, screen and other media barcodes
Wearable design ideal for warehouse and express applications
Supports all mainstream 1D and 2D barcodes (4mil resolution)
100,000 data storage capacity
Bluetooth 4.2 with intelligent automatic connection
Multiple modes: Bluetooth (HID, SPP, BLE), Wireless 2.4G

Technical Specifications

Attribute	Value
Model NO.	DI9130C-2D
Interface Type	USB
Scan Speed	300 scans/sec
Scan Element Type	CMOS
Scanning Mode	Auto Sense, Trigger, Continuous
CPU	32-Bit
Resolution	640*480
Resolution Ratio	4mil/0.1mm (PCS90%, Code 39)
Decoding Speed	35cm/S
Depth of Field	35mm~300mm
Scan Mode	Manual, Auto Sense, Continuous
Prompt Method	LED, Buzzer, Vibration
Print Contrast Signal	25%
Ambient Light	Dark Environment, Indoor Natural Light
Wireless Communication Mode	Synchronization, Storage
Storage	350kb
Battery Capacity	1200mAh
Battery Charging Time	About 2.5 Hours (5V@1000mA)
Continuous Working Time	8h
Transport Package	Brown Carton
Specification	17011040MM/box
Trademark	DYscan
Origin	China
HS Code	8471900090

Performance Specifications

Scan Type	CMOS
Light Source	Red Light LED 525±10nm (aim), 5600K LED (Lighting)
Field of View	Horizontal 45°× Vertical 34°
Scan Angle	Roll±360°, Pitch±60°, Skew±55°
Wireless Transmission Distance	Bluetooth 30 m, Wireless 2.4G 150m (Open distance)
Support System	Windows, Mac OS, IOS, Linux, Unix, Android

Physical Parameters

Weight	≈70g (without cable)
Dimension	L128.6mm * W46.7mm * H30.3mm
Communication Mode	USB
Interface Type	Type C
Power Supply	DC5V, 250mA (Work), 40mA (Standby)

Environmental Specifications

Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Transport Vibration Test	10H@125RPM

Supported Symbologies

1D Barcodes:

Codabar
Code39
Code32
Interleaved 2 of 5 (ITF25)
Industrial 2 of 5
Matrix 2 of 5
Code93
Code11
Code128
Gs1-128
UPC-A
UPC-E
EAN/JAN-8
EAN/JAN-13
ISBN
ISSN
GS1 databar
GS1 databar limited
GS1 databar expanded
ISBT

2D Barcodes:

PDF417
Micro PDF417
QR Code
Micro QR
Data Matrix
Aztec

Accessories

Cable	USB, connect the scanner to a host device and charging
Receiver	Used to receive and transmit scanner data

Product Images

Applications

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan: We are a professional manufacturer and developer of barcode scanners with 18 years of field experience. Our professional QC team and testing machines (engine age test, wire bend machine, switch life test, shock resistance test) ensure quality. All our barcode scanners pass CE, FCC, ROHS certifications.

Q2: How do you perform quality control?

DYscan: We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipment.

Q3: What is the warranty period for your barcode scanners?

DYscan: 12 months warranty.

Q4: How do you ensure stable performance?

DYscan: We use flow line production throughout processing. Every product is tested at least 4 times before delivery.

Q5: Do you provide OEM or ODM services?

DYscan: We offer OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.

Q6: What are your company strengths?

DYscan: As a professional scanner manufacturer, we have specialized departments (R&D, production, marketing/sales) each with dedicated directors ensuring quality at every stage.

Q7: Do I need to install drivers?

DYscan: No. Our scanners support plug-and-play functionality with no driver installation required. Compatible with Windows, Mac OS, IOS, Linux, UNIX, Android systems.
