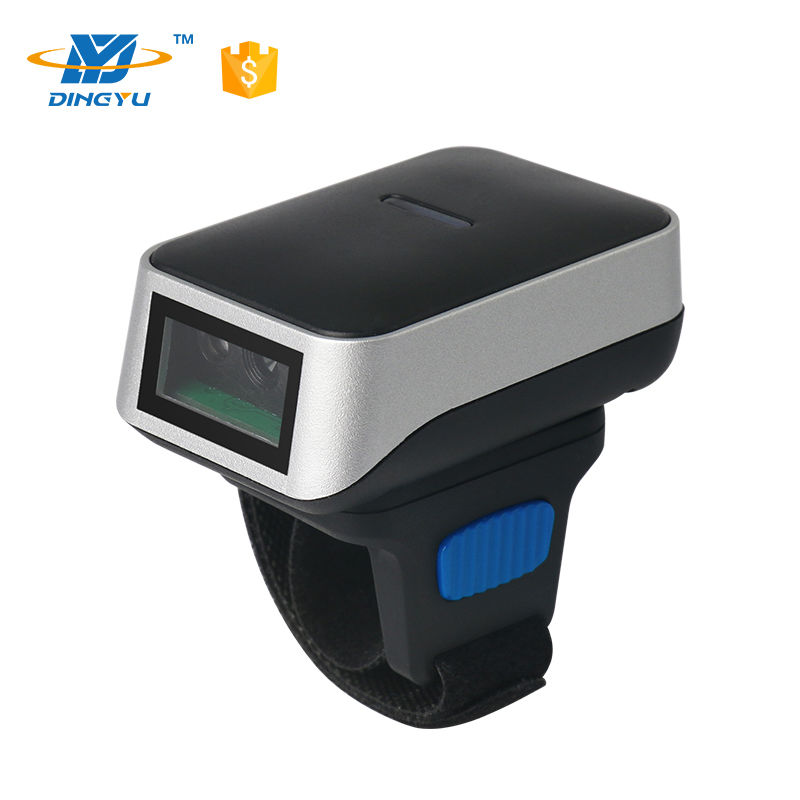

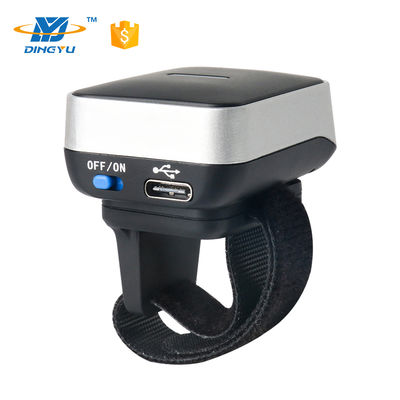

High Performance Mini Bluetooth Barcode Scanner
A wearable wireless 2D CMOS barcode scanner with leading image recognition technology, ideal for manufacturing, warehouse, logistics, healthcare, retail, and mobile payment applications.
Key Features
- Wearable design for warehouse and express applications
- Reads all mainstream 1D and 2D barcodes (4mil resolution)
- 100,000 data storage capacity
- Bluetooth 4.2 with intelligent automatic reconnection
- Multiple modes: Bluetooth (HID, SPP, BLE), wired connection
- Compatible with PC and mobile devices
Product Specifications
| Attribute |
Value |
| Model NO. |
DI9010C-2D |
| Interface Type |
USB |
| Scan Speed |
300 scans/sec |
| Scan Element Type |
CMOS |
| Scanning Modes |
Auto Sense, Trigger, Continuous |
| CPU |
32-Bit |
| Resolution |
640*480 |
| Battery Capacity |
450mAh |
| Continuous Working Time |
1.5 hours |
| Wireless Range |
30m (open distance) |
Technical Performance
| Parameter |
Specification |
| Scan Type |
CMOS |
| Light Source |
Red Light LED 525±10nm (aim), 5600K LED (Lighting) |
| Decoding Speed |
35cm/S |
| Depth of Field |
35mm~300mm (varies by barcode type) |
| Field of View |
Horizontal 45° × Vertical 34° |
| Scan Angles |
Roll±360°, Pitch±60°, Skew±55° |
Physical Parameters
| Weight |
≈35g (without cable) |
| Dimensions |
L52.0mm × W35.0mm × H45.4mm |
| Communication Modes |
USB-KBW, Wireless Bluetooth |
| Interface Type |
Type C |
Environmental Specifications
| Operating Temperature |
-20ºC to 55ºC |
| Storage Temperature |
-20ºC to 60ºC |
| Humidity |
5% to 95% (non-condensing) |
| Drop Height |
1.5m |
Supported Symbologies
1D Barcodes: Codabar, Code39, Code32, ITF25, Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar
2D Barcodes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec
Product Images
Frequently Asked Questions
Q1: How do you ensure the high quality of your barcode scanners?
DYscan is a professional manufacturer with 18 years of experience. We have a dedicated QC team and testing equipment including engine age tests, wire bend machines, and switch life tests. All our scanners pass CE, FCC, and ROHS certifications.
Q2: What is your quality control process?
We conduct wire bend tests for 1 million cycles, button tests for 1 million presses, and all devices are thoroughly tested before shipment.
Q3: What is the warranty period?
12 months warranty.
Q4: Do I need to install drivers?
No, our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android systems without requiring driver installation.
