1D 2D Barcode QR Code Scanner - Handheld Wired Cable Retail Barcode Scanner
The DS5220-1D is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset tracking.
Key Features
- Ergonomic design for comfortable extended use
- Reads all mainstream 1D barcodes with ease
- High-performance processor enables fast decoding (3mil resolution)
- Supports multiple languages and operating systems
- USB interface for universal connectivity
- Widely used in supermarkets, warehouses, mobile payments, and chain stores
Technical Specifications
Performance
| Scan Type |
Linear CCD |
| Light Source |
Visible red light, 625±10nm |
| CPU |
32-bit |
| Resolution |
2500 |
| Reading Precision |
≥3mil/0.076mm (PCS90%, Code 39) |
| Decoding Speed |
300 times/second |
| Depth of Field |
20mm~680mm |
| Scan Modes |
Manual, Continuous, Auto Sense, Flashing, control command |
| Prompt Method |
LED indicator, buzzer |
| Scan Angle |
Pitch: ±60°, Roll: ±30°, Skew: ±60° |
| Supported Symbologies |
UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc. |
Physical Parameters
| Weight |
≈160.8g (without cable) |
| Dimensions |
L68.4mm × W170.6mm × H87.6mm |
| Communication Mode |
USB, USB-COM |
| Power Supply |
DC 5V@80mA (work) |
Environmental Specifications
| Operating Temperature |
-20ºC to 50ºC |
| Storage Temperature |
-40ºC to 60ºC |
| Humidity |
5% to 95% (non-condensing) |
Accessories
- USB Cable for connecting to host devices
- RS232 Cable with USB supply cable for alternative connections

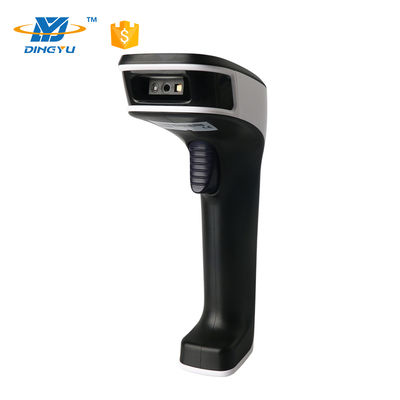

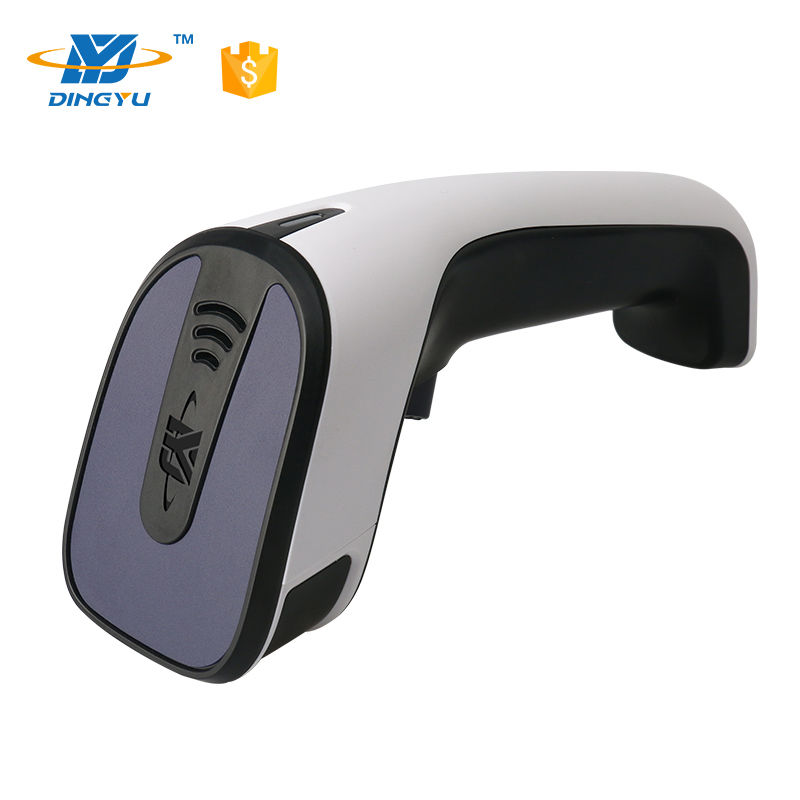

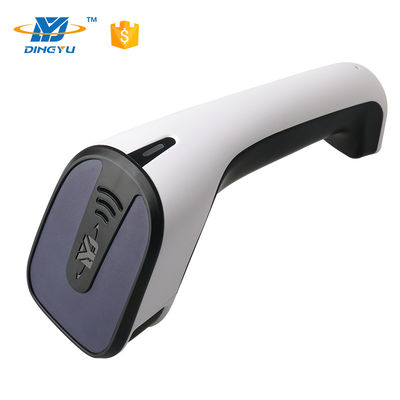

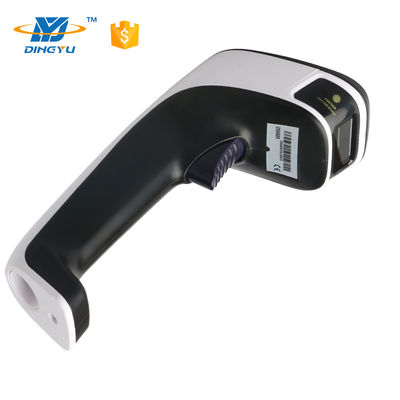

Product Images
Frequently Asked Questions
Q1: How do you ensure high quality barcode scanners?
DYscan is a professional manufacturer with 18 years of experience in barcode scanner development. We maintain strict quality control with professional testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our products are CE, FCC, and ROHS certified.
Q2: What quality control measures do you implement?
We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes thorough inspection before shipping.
Q3: What is the warranty period?
12 months warranty from date of purchase.
Q4: How do you maintain stable performance?
We implement flow line production with multiple quality checkpoints. Each product is tested at least 4 times before delivery.
Q5: Do you offer OEM/ODM services?
Yes, we provide OEM services including custom branding and packaging. Our technical team supports ODM development for specialized requirements.
Q6: What are your company strengths?
We have dedicated departments for R&D, production, and sales/marketing, each led by experienced directors. This structure ensures professional product development and customer support.
Q7: Are drivers required for operation?
No drivers needed - our scanners support plug-and-play functionality with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
